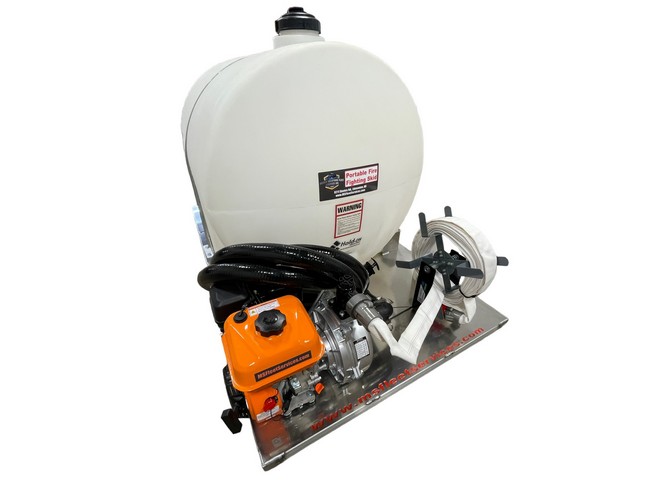

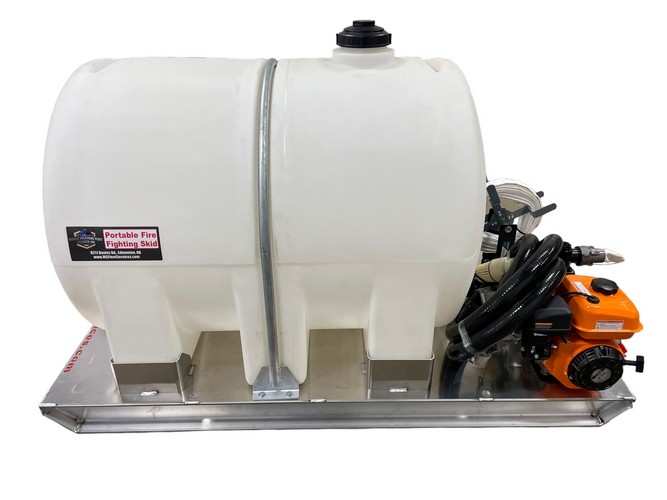

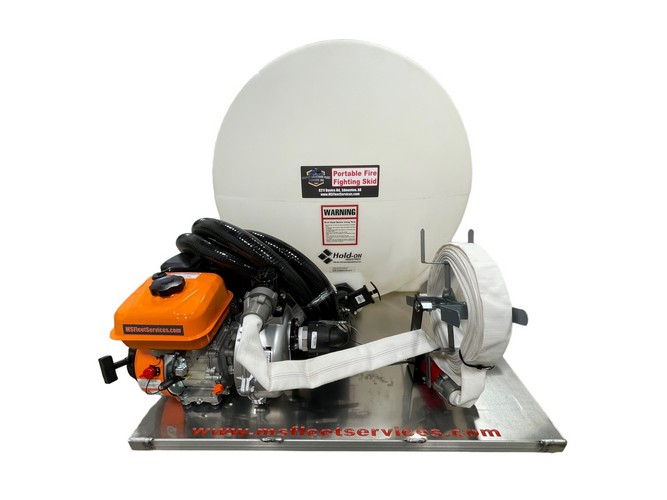

FIRE FIGHTING SKIDS

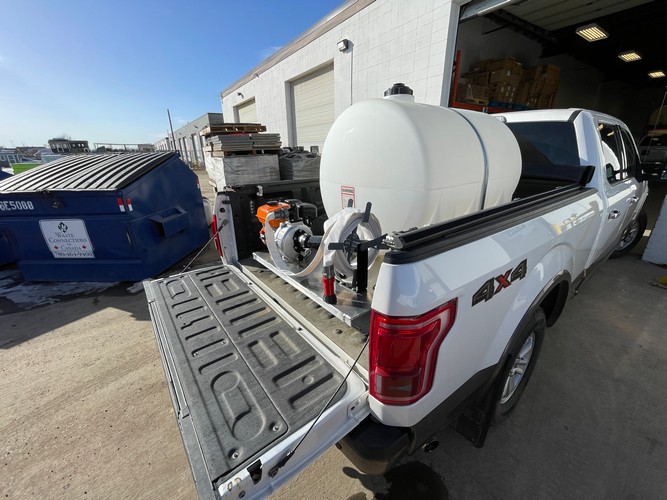

Our rapid deployment skids are manufactured in Edmonton, all the components are laser cut for precision and CNC bent for accuracy. We manufacture the skid out of strong yet lightweight and rust proof aluminum.  The skids feature a very tough poly tank with a check valve lid that allows air to replace the water used while not allowing water to spill out while transporting over rough terrain.  The skids can transform any pickup box (6.5ft or 8ft), or trailer into a firefighting unit in minutes.  We have four anchor points in the main structure of the unit which will attach to the cleats in all truck boxes, decks, or utility trailers.  These units can be filled at water stations, from water trucks or garden hose.  Our kits can also quickly and efficiently draw water from a nearby source, such as a pond, lake river or pool, and deliver it to the site of the fire or with the use of the included suction hose fill the tank remotely and transport the water to the site of the fire. Each unit comes complete with everything you need including skid, mounted tank, pump, hose reel, fire hose with adjustable spray nozzle, suction hose, manual and basic tool kit.  This kit can help prevent or contain fires, protect property, and potentially save lives.

Specifications

Skid

-Overall assembled empty weight 270lb
-Width 43”
-Length 76”
-Height 47”
-Aluminum frame.
-4 Anchor points in frame.
-10 year warranty.

Pump
-Engine type 4 Cycle.
-Engine displacement 212cc.
-Engine Speed 3600pm .
-Recoil easy start.
-Low oil safety shutdown feature.
-Fuel Capacity 3.6L.
-Maximum flow rate 7,920gph.
-Maximum discharge height 170′.
-Maximum suction lift 24′.
-Maximum pressure 90 PSI
-Water discharge distance of up to 75’
-Aluminum pump housing and impeller.
-1.5” 50’ Fire hose with variable spray nozzle.
-2” 12’ suction hose with foot valve and camlok fitting.
-1 year manufacturer’s warranty.

Tank

-Capacity 1000L
-6” Lid with built in check valve.
-2” Siphon tube.
-2” Bulkhead with gate valve.
-Hose with camlok style quick connect fitting.
-FDA approved food grade plastic.
-UV stabilized material.
-Rugged poly material.
-Low profile design specifically for vehicle transport.
-Galvanized hoop.
-10 year manufacturer warranty.
